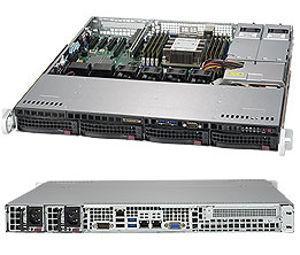

SuperChassis 813MFTQC-R407CB - Supermicro
Znajdź w sklepie Bizserver
Opis:
1U chassis support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".
4 x 3.5" hot-swap SAS/SATA
1U 4-Port 12Gbps Backplane Support 4x3.5
1U 400W Redundant Power Supply Platinum with PMBUS W54.5xL220xH40mm
1 full height expansion slot(s)
4 x 40x28mm PWM fan(s)
1U chassis support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".
4 x 3.5" hot-swap SAS/SATA
1U 4-Port 12Gbps Backplane Support 4x3.5
1U 400W Redundant Power Supply Platinum with PMBUS W54.5xL220xH40mm
1 full height expansion slot(s)
4 x 40x28mm PWM fan(s)
Specyfikacja
Ogólne
Producent:
Supermicro
Nazwa:
CSE-813MFTQC-R407CB
Wnęka na napęd:
4 x 3.5" hot-swap SAS/SATA
Karty rozszerzeń:
1 full height expansion slot(s)
Backplane:
1U 4-Port 12Gbps Backplane Support 4x3.5
Napędy peryferyjne:
Optional 1 x Slim DVD-ROM Drive
Optional 1 x USB + COM port tray
Optional 1 x USB + COM port tray
Procesor
Wsparcie procesora:
Dual and Single Intel® and AMD processors
Środowisko Operacyjne
Operacyjny zakres temperatur:
5°C - 35°C (41°F - 95°F)
Nieoperacyjny zakres temperatur:
-40°C - 70°C (-40°F - 158°F)
Operacyjny zakres wilgotności:
8% - 90% (non-condensing)
Nieoperacyjny zakres wilgotności:
5% - 95% (non-condensing)
Regulatory (Zasilanie):
BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Obudowa serwerowa
Rodzaj obudowy:
1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".
Wymiary
Wysokość:
1.7" (43 mm)
Szerokość:
17.2" (437 mm)
Długość:
19.85" (503 mm)
Waga:
33.5 lbs (15.2 kg)
Dostępny kolor:
Black
Panel Przedni
Panel przedni - przyciski:
Power On/Off button
System Reset Button
System Reset Button
Panel przedni - LEDy:
2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED
HDD activity LED
Power Status LED
System Information LED
Chłodzenie
Wentylatory:
4 x 40x28mm PWM fan(s)
Zasilanie
Zasilacz:
1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
Efektywność energetyczna:
94%
Lista podzespołów
| Optional Parts List | |||
| Part Number | Ile | Opis | |
| Front USB | MCP-220-00114-0N | - | Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH |
| Front USB | MCP-220-00129-0B | - | Black 2x USB3.0/COM port tray in slim FDD bay |
| Mounting Rail | CSE-PT52L | - | Sliver chassis rail set for SC813M,515,113M |
| Front Bezel | CSE-PTFB-813LB | - | BLACK SC813 FRONT BEZEL, PB FREE |
| Peripheral Drive(s) | MCP-220-00110-0B | - | Black USB/COM port tray in slim DVD bay,RoHS/REACH,PBF |
| Standard Parts List | |||
| Part Number | Ile | Opis | |
| HD Backplane | BPN-SAS3-815TQ | 1 | 1U 4-Port 12Gbps Backplane Support 4x3.5 |
| Cable(S) | CBL-0071L | 1 | CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG |
| Cable(S) | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH |
| CD-ROM & Akcesoria | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS |
| Fan(s) | FAN-0154L4 | 4 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH |
| Front Panel | FPB-FP813-D | 1 | Front control board dual color for SC815,SC813M (C) |
| Cooling Fan & Akcesoria | MCP-320-00031-0B | 1 | Fan tray for six 40x28 fans(SC813M/113M) |
| Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5"; HDD tray |
| Power Distributor | PDB-PT813M-2424 | 1 | Power Distributor With 24pin for SC813M |
| Part(s) | MCP-340-00001-01 | 2 | Dummy fan 40x28mm |
| Part(s) | MCP-260-00078-0N | 1 | 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF |
| Zasilacz & Akcesoria | PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH |
| Zasilacz & Akcesoria | MCP-250-00016-0V | 1 | Redundant Silver plastic PDB cover for SC813M,113M |
| Mounting Rail(s) | MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6" to 33.05" |
| Mounting Rail(s) | MCP-290-00108-0N | 1set | Inner rail, front, short, quick-release type |
| Mounting Rail(s) | MCP-290-00110-0N | 1set | Inner rail, extension (quick) for 1U 17.2 |
| Rear Window | MCP-240-00086-0N | 1 | STD rear window for SC113 redundant PWS |
