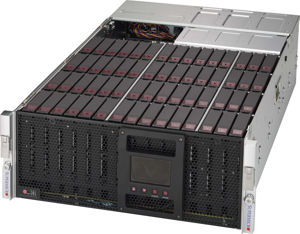

SuperChassis 946SE1C-R1K66JBOD - Supermicro
Znajdź w sklepie Bizserver
Opis:
Extreme High Density and High Capacity Storage Chassis support 60 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HHD/SSD Bays
Tool-less HDD tray with HDD LED indicator
Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance high availability or high redundancy requirements
1x IPMI port for Remote System Power on/off and system monitoring
Support NTP for time synchronization & RTC battery backup
1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
Optimized cooling w/ 5x 80x38mm rear hot-swap fans
Support front LCD panel for system status & error info (Option)
Ideal for Cloud backup data Replication or High density Archive Storage Applications
Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
Extreme High Density and High Capacity Storage Chassis support 60 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HHD/SSD Bays
Tool-less HDD tray with HDD LED indicator
Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance high availability or high redundancy requirements
1x IPMI port for Remote System Power on/off and system monitoring
Support NTP for time synchronization & RTC battery backup
1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
Optimized cooling w/ 5x 80x38mm rear hot-swap fans
Support front LCD panel for system status & error info (Option)
Ideal for Cloud backup data Replication or High density Archive Storage Applications
Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
Specyfikacja
Ogólne
Producent:
Supermicro
Nazwa:
CSE-946SE1C-R1K66JBOD
Wnęka na napęd:
60 x 3.5" hot-swap SAS/SATA drive bay with SES3
Backplane:
30-port 4U 946S Top-load SAS3 12Gbps single-expander midplane, support up to 30x 3.5-inch SAS3/SATA3 HDD/SSD
Środowisko Operacyjne
Operacyjny zakres temperatur:
5°C - 35°C (41°F - 95°F)
Nieoperacyjny zakres temperatur:
-40°C - 60°C (-40°F - 140°F)
Operacyjny zakres wilgotności:
8% - 90% (non-condensing)
Nieoperacyjny zakres wilgotności:
5% - 95% (non-condensing)
Regulatory (Zasilanie):
BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL
Obudowa serwerowa
Rodzaj obudowy:
4U JBOD storage chassis
Wymiary
Wysokość:
7" (178 mm)
Szerokość:
17.2" (437 mm)
Długość:
30.2" (767.08 mm)
35.2" (894 mm) with cable management arm installed
35.2" (894 mm) with cable management arm installed
Waga:
155 lbs (70.31 kg)
Dostępny kolor:
Black
Panel Przedni
Panel przedni - przyciski:
Power On/Off button
Unit Identification (UID) button
Unit Identification (UID) button
Panel przedni - LEDy:
1 Network Activity LEDs
Power Status LED
Power Fail LED
System Information LED
Power Status LED
Power Fail LED
System Information LED
Chłodzenie
Wentylatory:
5 x 80mm rear hot-swap exhaust PWM fan(s)
Zasilanie
Zasilacz:
1600W redundant power supply, Platinum level with PMBus & I2C
Efektywność energetyczna:
94%
Lista podzespołów
| Optional Parts List | |||
| Part Number | Ile | Opis | |
| Cable | CBL-SAST-0690-1 | - | MINI SAS HD,12G,EXT,2M,30AWG,RoHS |
| Cable | CBL-SAST-0677 | - | 3m 12G external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
| LCD | MCP-210-94602-0B | 1 | 3.5" LCD display kit for SC946S |
| Adaptor Bracket | MCP-290-00166-0N | - | Threaded rail adapter, auto latch, for round hole rack,RoHS |
| Standard Parts List | |||
| Part Number | Ile | Opis | |
| HD Backplane | BPN-SAS3-946SEL1 | 2 | 30-port 4U 946S Top-load SAS3 12Gbps single-expander midplane, support up to 30x 3.5-inch SAS3/SATA3 HDD/SSD |
| Control Board | CSE-PTJBOD-CB3 | 1 | JBOD chassis power control board with IPMI remote on/off feature |
| Cable(S) | CBL-0087 | 1 | CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM |
| Cable(S) | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
| Cable(S) | CBL-0303L | 1 | 4 pin to 4 pin power cable, S-RA, 40CM. 20AWG |
| Cable(S) | CBL-0459L | 2 | LATCH CLAMP,AC POWER CORD |
| Cable(S) | CBL-CDAT-0601 | 2 | CBL,I2C,1X4F/P2.5 TO 1X4F/P2.5,50CM,26AWG,BRN/BLK-SHUNT/ORG |
| Cable(S) | CBL-NTWK-0587 | 1 | INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD |
| Cable(S) | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG |
| Cable(S) | CBL-PWEX-0861 | 1 | Powerlug to 5.7 Radsok, black 12AWG, 32cm for SC946S |
| Cable(S) | CBL-PWEX-0862 | 1 | Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S |
| Cable(S) | CBL-PWEX-0863 | 1 | Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S |
| Cable(S) | CBL-PWEX-0864 | 1 | Powerlug to 5.7 Radsok, yel 12AWG, 53cm for SC946S |
| Cable(S) | CBL-SAST-0833 | 2 | SLIMLINE SAS, INT, 55MM, 32AWG |
| Cable(S) | CBL-SAST-0834 | 2 | SLIMLINE SAS to MiniSAS HD, INT, 50CM, 32AWG |
| Cable(S) | CBL-SAST-0835 | 2 | SLIMLINE SAS to MiniSAS HD, INT, 100CM, 32AWG |
| Fan(s) | FAN-0184L4 | 5 | 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Obudowa (60-bay) |
| Front Panel | FPB-FP829H | 1 | Front Control Board for SC829H chassis |
| Drive Tray(s) | MCP-220-94601-0N | 60 | SC946ED 3.5" / 2.5" tool-less HDD tray |
| Power Distributor | PDB-PT946S-L824 | 1 | 4U PDB support over 2KW for SC946S and 45bay system.,RoHS |
| Zasilacz & Akcesoria | PWS-1K66P-1R | 2 | 1U 1600W Redundant Platinum Zasilacz 73.5mm width,RoHS/REACH,PBF |
| Mounting Rail(s) | MCP-290-00133-0N | 1 | |
| Mounting Rail(s) | MCP-290-00137-0N | 1 | Rail set, Auto-latch, quick/quick, default 4U 17.2";W |
| Rear Window | MCP-240-94604-0N | 1 | SC946S rear window, NO I/O. w/ 3x LP slots |
