AOC-MGP-i4M - Supermicro

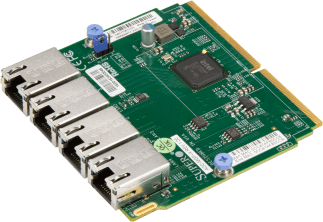

Zdjecie - AOC-MGP-i4M - Supermicro
Znajdź w sklepie Bizserver Opis:
Super I/O Module (SIOM) Form Factor
Intel® i350 GbE controller
Quad RJ45 Ports
VMDq and SR-IOV for Virtualized Environments
Jumbo Frames support
Energy Efficient Ethernet (EEE)
iSCSI Remote Boot Support
PXE Boot Support
Support for most Network Operating Systems
Asset Management Features
NC-SI for Remote Management
RoHS compliant 6/6



Cechy kluczowe:
Supermicro® Super I/ug options and the AOC-MGP-i4 is the most flexible and scalable GbE SIOM controller. Based on Intel GbE network controller i350, it is designed with performance enhancing features and power management technologies.

Środowisko Operacyjne

RoHS Compliant 6/6, Pb Free
- Intel® i350 GbE controller
- Super I/O Module (SIOM) Form Factor
- Quad RJ45 ports
- Intel® I/O Acceleration Technology (Intel® I/OAT)

Ethernet Features
- IEEE 802.3 auto-negotiation for speed, duplex, and flow control
- IEEE 802.3x and 802.3z compliant flow control support
- Automatic cross-over detection function (MDI/MDI-X)
- 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY
specifications Compliant
- IEEE 1588 protocol and 802.1AS implementation

Power Management and Efficiency
- Energy Efficient Ethernet (EEE)
- DMA Coalescing reduces platform power consumption
- Active State Power Management (ASPM) support
- LAN disable function
- MAC Power Management controls
- Low Power Link Up - Link Speed Control

Virtualization Features
- PC-SIG SR-IOV support
- VM to VM Packet forwarding (Packet Loopback)
- Flexible Port Partitioning
- IEEE 802.1q VLAN support
- IEEE 802.1q advanced packet filtering
- Jumbo Frames support

Performance Features
- TCP/UDP, IPv4 and IPv6 checksum offloads to improve
CPU usage
- Low Latency Interrupts
- Tx TCP segmentation offload (IPv4, IPv6) increases
throughput and lowers processor usage
- Receive Side Scaling (RSS) for Windows environment,
Scalable I/O for Linux environments
- Intelligent interrupt generation

Management Features
- Preboot eXecution Environment (PXE) support
- iSCSI Remote Boot Support
- Asset Management support on Supermicro® platforms
- Controller asset tags such as part number, revision,
serial number, and MAC addresses
- NC-SI for remote management

OS Support
- Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
- Windows 8.1, 8, 7 (x64 Edition)
- RedHat Linux
- SUSE Linux
- FreeBSD
- VMWare

Cables Support
- RJ45 Category 5/5e up to 100m

Power Consumption
- Typical 3.7W, Maximum 4.4W

Operating Conditions
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 90% non-condensing relative humidity
at 35°C

Physical Dimensions (W x D)
- Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)

Supported Platforms
- Supermicro® motherboards with Super I/O Module slot
- Supermicro® server systems with Super I/O Module slot
